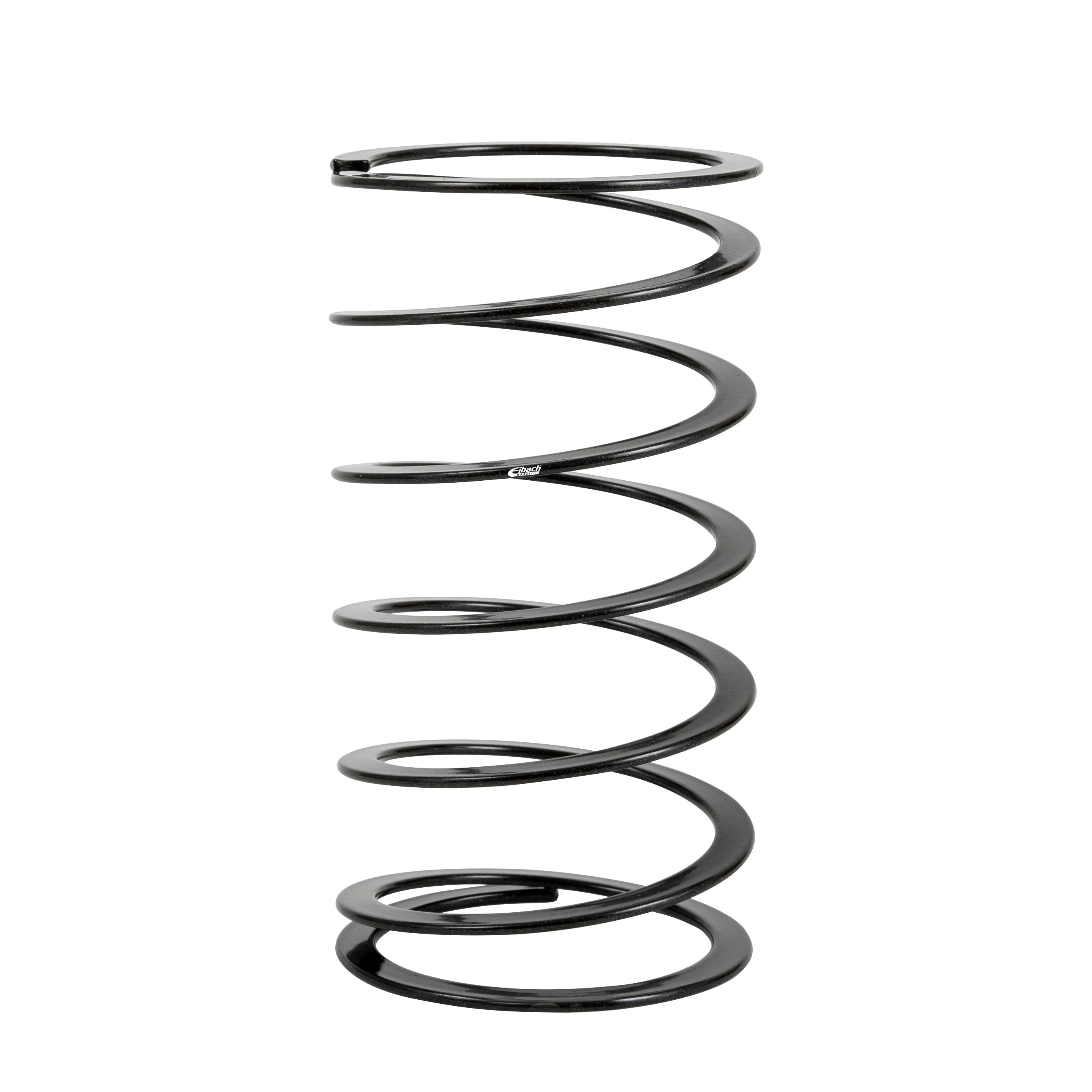

Eibach EPR (PR1300.500.0050) PR1300 Length 5.0" ID 50 lbs Rate

Part Number= PR1300.500.0050

PG= EPR

Length= 13 (inch) / 330 (mm)

Diameter= 5.00 O.D. (inch) / 127 O.D. (mm)50 (lbs/inch)

Rate= 0.89 (KG/mm) 8.76 (N/mm)

Block Height= 2.23 (inch) / 56.7

Travel= 10.76 (inch) / 273.3 (mm)

Block Load= 538.355239786856 (lbs) / 2396 (N))

Weight= 2.43404255319149 (lbs) / 1.1 (KGS)

Eibach Race Spring System

• Over 1,300 single components – main and tender springs – metric and imperial, various auxiliary race suspension accessories, ready and in stock on 5 continents
• Comprehensive Program of single components
• Single Main Springs with highest rate-linearity and lowest rate tolerance
• Progressive Characteristics via set-up of different springs serially – double or even triple spring combinations
• Extreme Low Weights achieved through Super Hi-Ten materials and manufacturing technology
• Smallest Solid heights, maximized spring travels and higher maximum loads
• Spring Surface Stabilization through specialized shot peening
• Every ERS Spring preset to block
• Block and Sag Resistant
• Smallest Tolerances and precise plane parallelism of spring ends
• High Dynamic Durability – under Motorsport conditions
• High quality corrosion protection by phosphating and epoxy coating
• Springs Printed with part-number (speaking code = rate and dimensions)
