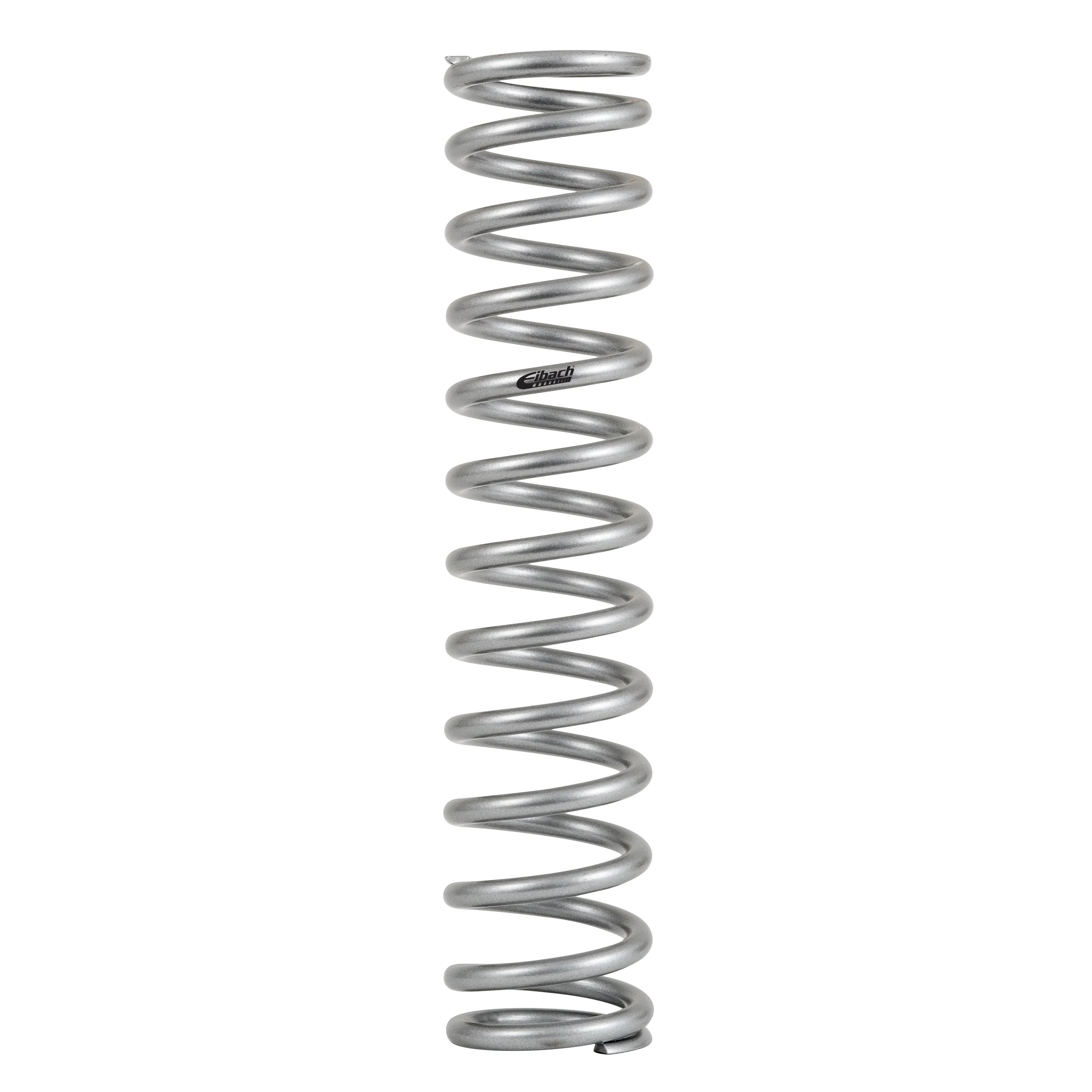

Eibach ERS (1400.375.0250S) 1400 Length 3.75" ID 0250S lbs Rate

Part Number= 1400.375.0250S

PG= ERS

Length= 14 (inch) / 356 (mm)

Diameter= 3.75 I.D. (inch) / 95 I.D. (mm)250 (lbs/inch)

Rate= 4.46 (KG/mm) 44 (N/mm)

Block Height= 4.53 (inch) / 115

Travel= 9.49 (inch) / 241 (mm)

Block Load= 2370 (lbs) / 10542 (N))

Weight= 7.05 (lbs) / 3.2 (KGS)

Eibach Race Spring System

• Over 1,300 single components – main and tender springs – metric and imperial, various auxiliary race suspension accessories, ready and in stock on 5 continents
• Comprehensive Program of single components
• Single Main Springs with highest rate-linearity and lowest rate tolerance
• Progressive Characteristics via set-up of different springs serially – double or even triple spring combinations
• Extreme Low Weights achieved through Super Hi-Ten materials and manufacturing technology
• Smallest Solid heights, maximized spring travels and higher maximum loads
• Spring Surface Stabilization through specialized shot peening
• Every ERS Spring preset to block
• Block and Sag Resistant
• Smallest Tolerances and precise plane parallelism of spring ends
• High Dynamic Durability – under Motorsport conditions
• High quality corrosion protection by phosphating and epoxy coating
• Springs Printed with part-number (speaking code = rate and dimensions)
