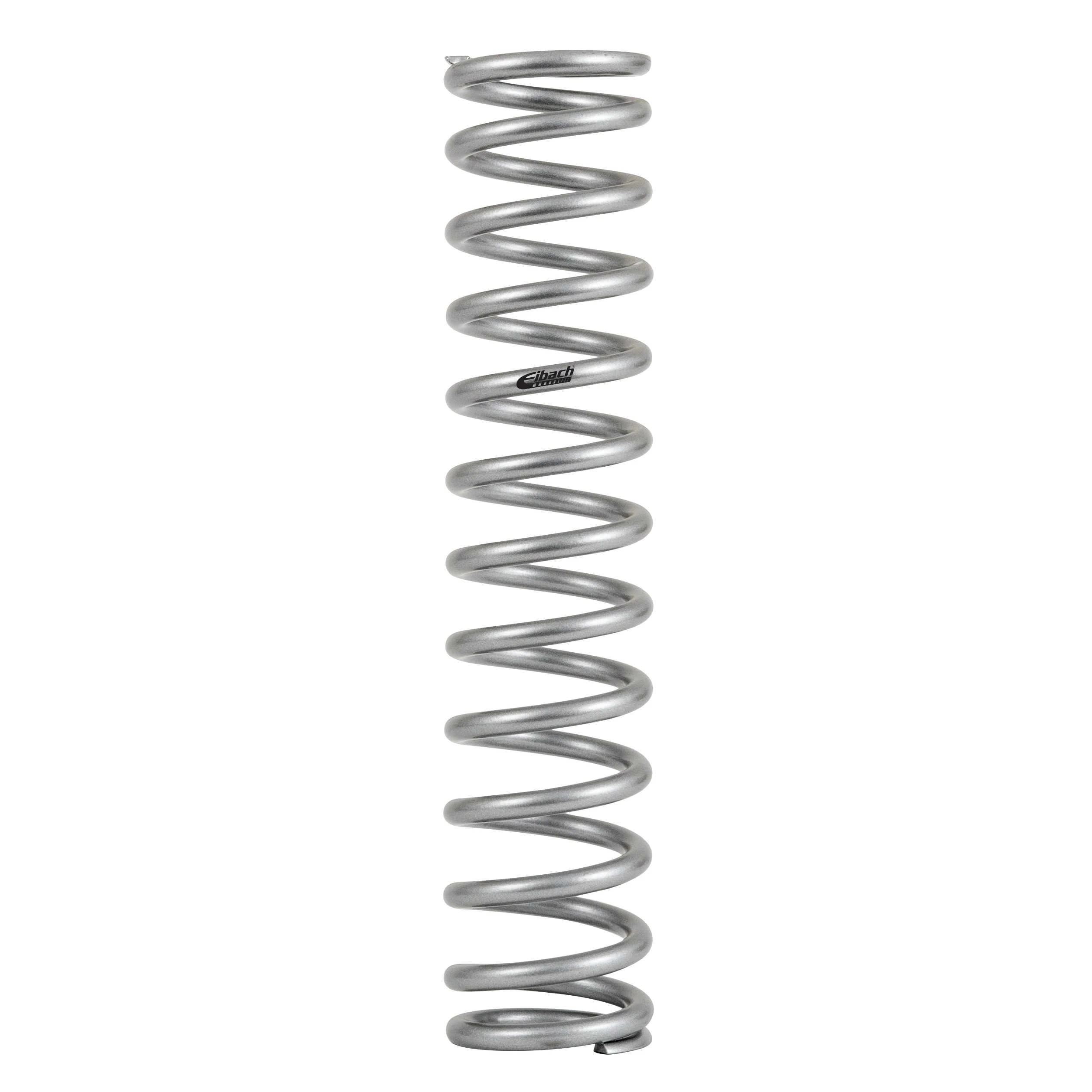

Eibach ERS (1800.375.0600S) 1800 Length 3.75" ID 0600S lbs Rate

Part Number= 1800.375.0600S

PG= ERS

Length= 18 (inch) / 457 (mm)

Diameter= 3.75 I.D. (inch) / 95 I.D. (mm)600 (lbs/inch)

Rate= 10.71 (KG/mm) 105 (N/mm)

Block Height= 8.17 (inch) / 207

Travel= 9.83 (inch) / 250 (mm)

Block Load= 5858 (lbs) / 26246 (N))

Weight= 19.8 (lbs) / 9 (KGS)

Eibach Race Spring System

• Over 1,300 single components – main and tender springs – metric and imperial, various auxiliary race suspension accessories, ready and in stock on 5 continents
• Comprehensive Program of single components
• Single Main Springs with highest rate-linearity and lowest rate tolerance
• Progressive Characteristics via set-up of different springs serially – double or even triple spring combinations
• Extreme Low Weights achieved through Super Hi-Ten materials and manufacturing technology
• Smallest Solid heights, maximized spring travels and higher maximum loads
• Spring Surface Stabilization through specialized shot peening
• Every ERS Spring preset to block
• Block and Sag Resistant
• Smallest Tolerances and precise plane parallelism of spring ends
• High Dynamic Durability – under Motorsport conditions
• High quality corrosion protection by phosphating and epoxy coating
• Springs Printed with part-number (speaking code = rate and dimensions)
