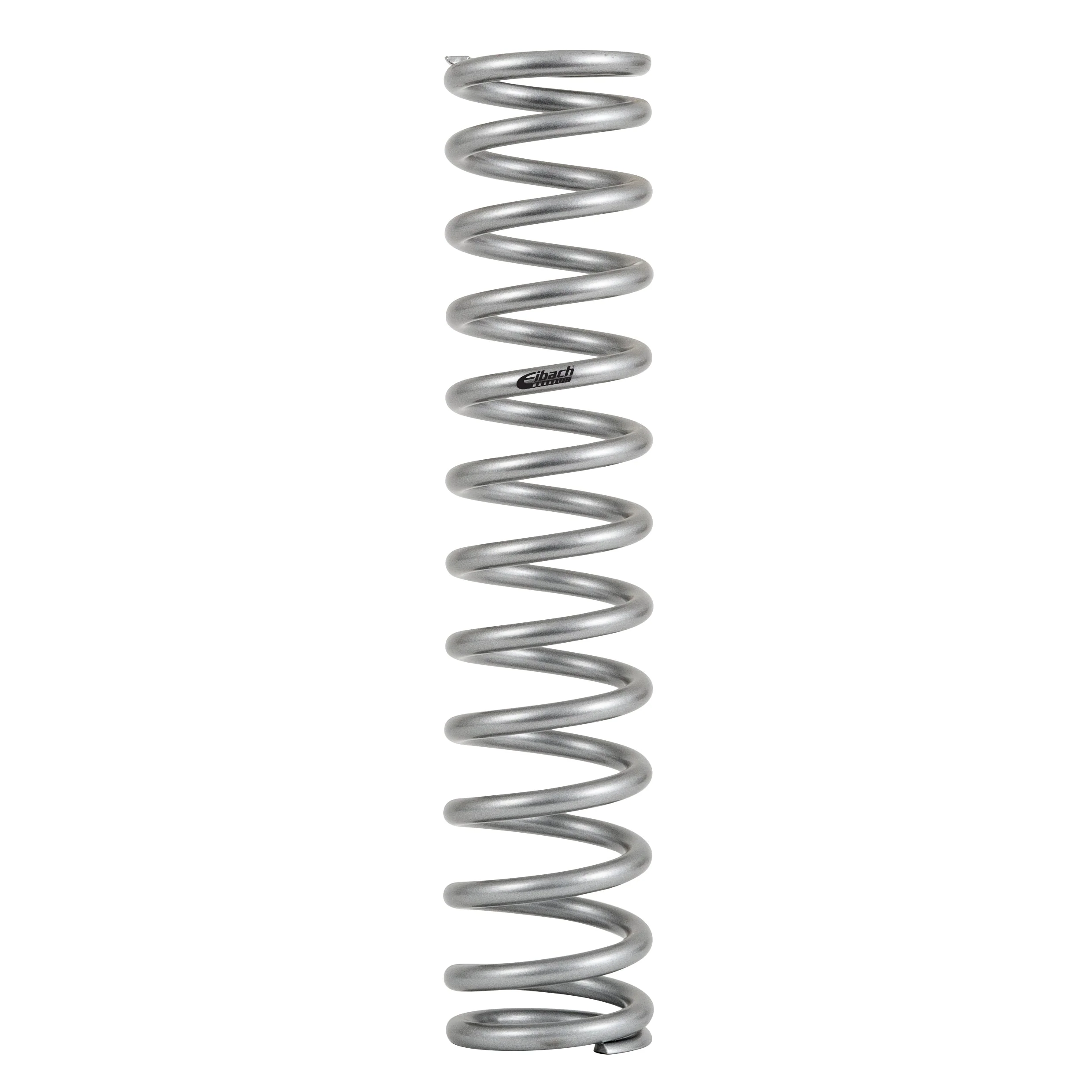

Eibach ERS (2000.375.0300S) 2000 Length 3.75" ID 0300S lbs Rate

Part Number= 2000.375.0300S

PG= ERS

Length= 20 (inch) / 508 (mm)

Diameter= 3.75 I.D. (inch) / 95 I.D. (mm)300 (lbs/inch)

Rate= 5.36 (KG/mm) 53 (N/mm)

Block Height= 7.36 (inch) / 187

Travel= 12.64 (inch) / 321 (mm)

Block Load= 3792 (lbs) / 16868 (N))

Weight= 13.62 (lbs) / 6.18 (KGS)

Eibach Race Spring System

• Over 1,300 single components – main and tender springs – metric and imperial, various auxiliary race suspension accessories, ready and in stock on 5 continents
• Comprehensive Program of single components
• Single Main Springs with highest rate-linearity and lowest rate tolerance
• Progressive Characteristics via set-up of different springs serially – double or even triple spring combinations
• Extreme Low Weights achieved through Super Hi-Ten materials and manufacturing technology
• Smallest Solid heights, maximized spring travels and higher maximum loads
• Spring Surface Stabilization through specialized shot peening
• Every ERS Spring preset to block
• Block and Sag Resistant
• Smallest Tolerances and precise plane parallelism of spring ends
• High Dynamic Durability – under Motorsport conditions
• High quality corrosion protection by phosphating and epoxy coating
• Springs Printed with part-number (speaking code = rate and dimensions)
