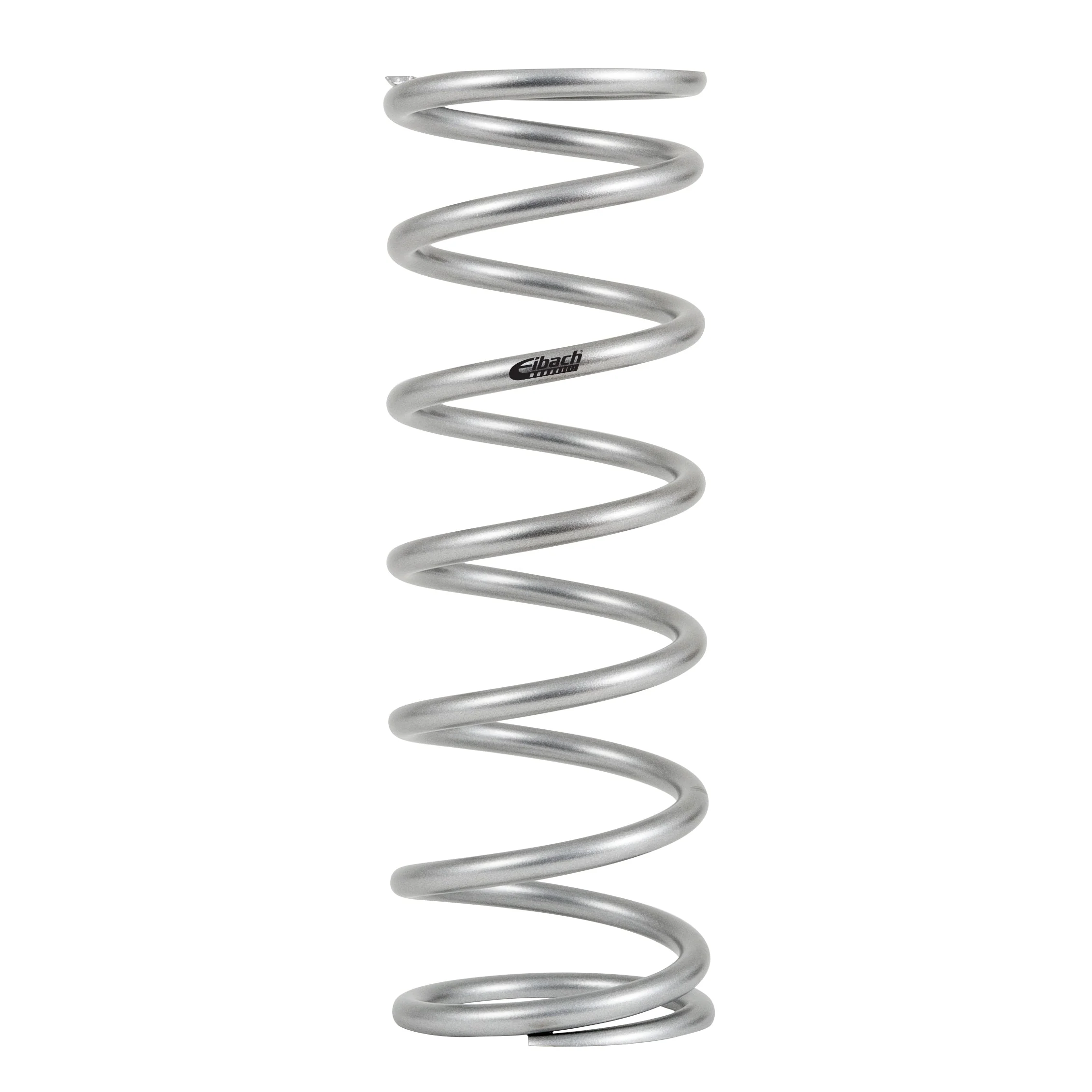

Eibach ERS (2400.300.0650S) 2400 Length 3.0" ID 0650S lbs Rate

Part Number= 2400.300.0650S

PG= ERS

Length= 24 (inch) / 610 (mm)

Diameter= 3.00 I.D. (inch) / 76 I.D. (mm)650 (lbs/inch)

Rate= 11.61 (KG/mm) 114 (N/mm)

Block Height= 13 (inch) / 330

Travel= 11.02 (inch) / 280 (mm)

Block Load= 7160 (lbs) / 31864 (N))

Weight= 27.28 (lbs) / 12.4 (KGS)

Eibach Race Spring System

• Over 1,300 single components – main and tender springs – metric and imperial, various auxiliary race suspension accessories, ready and in stock on 5 continents
• Comprehensive Program of single components
• Single Main Springs with highest rate-linearity and lowest rate tolerance
• Progressive Characteristics via set-up of different springs serially – double or even triple spring combinations
• Extreme Low Weights achieved through Super Hi-Ten materials and manufacturing technology
• Smallest Solid heights, maximized spring travels and higher maximum loads
• Spring Surface Stabilization through specialized shot peening
• Every ERS Spring preset to block
• Block and Sag Resistant
• Smallest Tolerances and precise plane parallelism of spring ends
• High Dynamic Durability – under Motorsport conditions
• High quality corrosion protection by phosphating and epoxy coating
• Springs Printed with part-number (speaking code = rate and dimensions)
