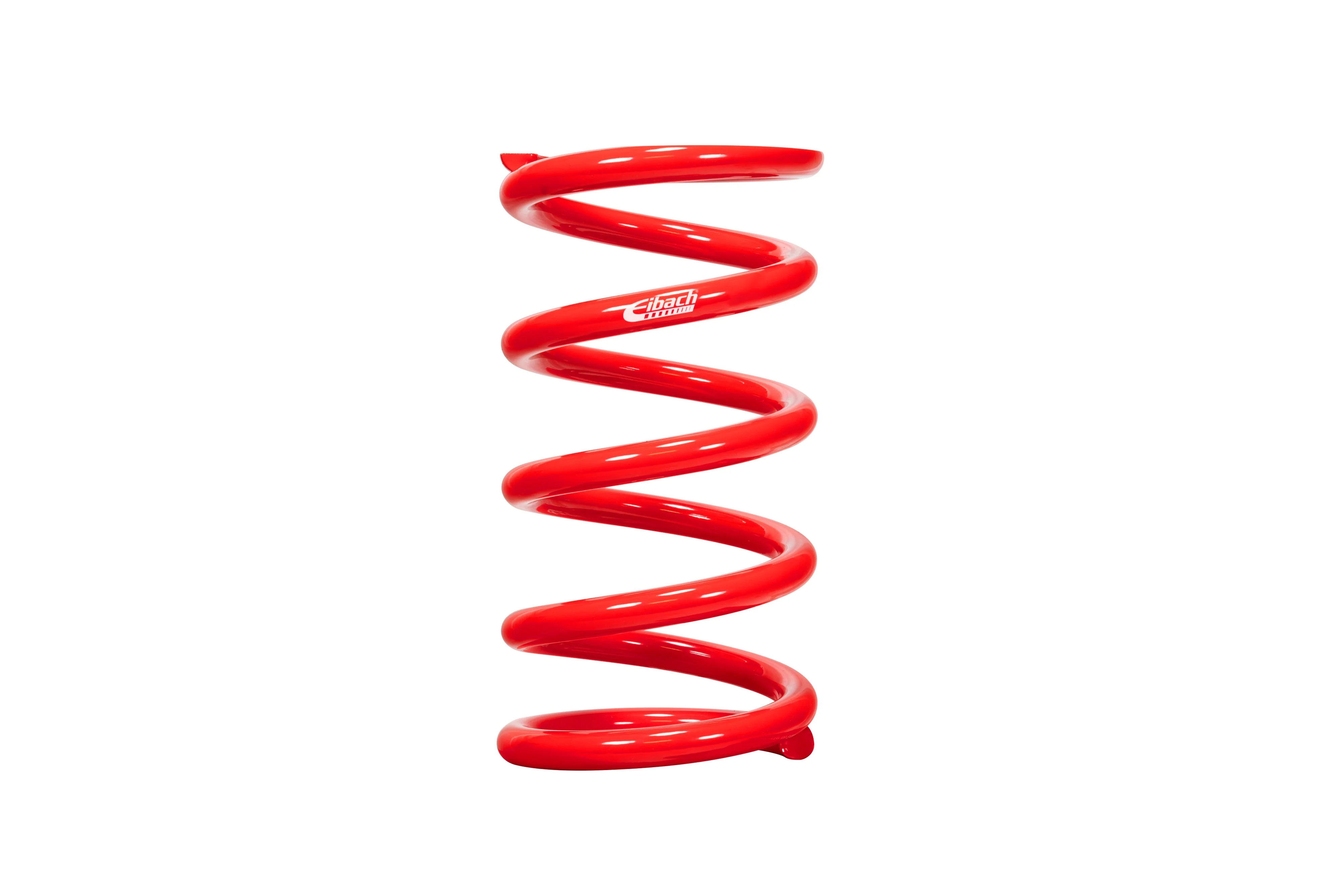

Eibach ESF (0950.550.0325) 950 Length 5.5" ID 325 lbs Rate

Part Number= 0950.550.0325

PG= ESF

Length= 9.5 (inch) / 241 (mm)

Diameter= 5.50 O.D. (inch) / 140 O.D. (mm)325 (lbs/inch)

Rate= 5.8 (KG/mm) 57 (N/mm)

Block Height= 2.87 (inch) / 73

Travel= 6.63 (inch) / 169 (mm)

Block Load= 2156 (lbs) / 9589 (N))

Weight= 4.85 (lbs) / 2.2 (KGS)

Eibach Race Spring System

• Over 1,300 single components – main and tender springs – metric and imperial, various auxiliary race suspension accessories, ready and in stock on 5 continents
• Comprehensive Program of single components
• Single Main Springs with highest rate-linearity and lowest rate tolerance
• Progressive Characteristics via set-up of different springs serially – double or even triple spring combinations
• Extreme Low Weights achieved through Super Hi-Ten materials and manufacturing technology
• Smallest Solid heights, maximized spring travels and higher maximum loads
• Spring Surface Stabilization through specialized shot peening
• Every ERS Spring preset to block
• Block and Sag Resistant
• Smallest Tolerances and precise plane parallelism of spring ends
• High Dynamic Durability – under Motorsport conditions
• High quality corrosion protection by phosphating and epoxy coating
• Springs Printed with part-number (speaking code = rate and dimensions)
