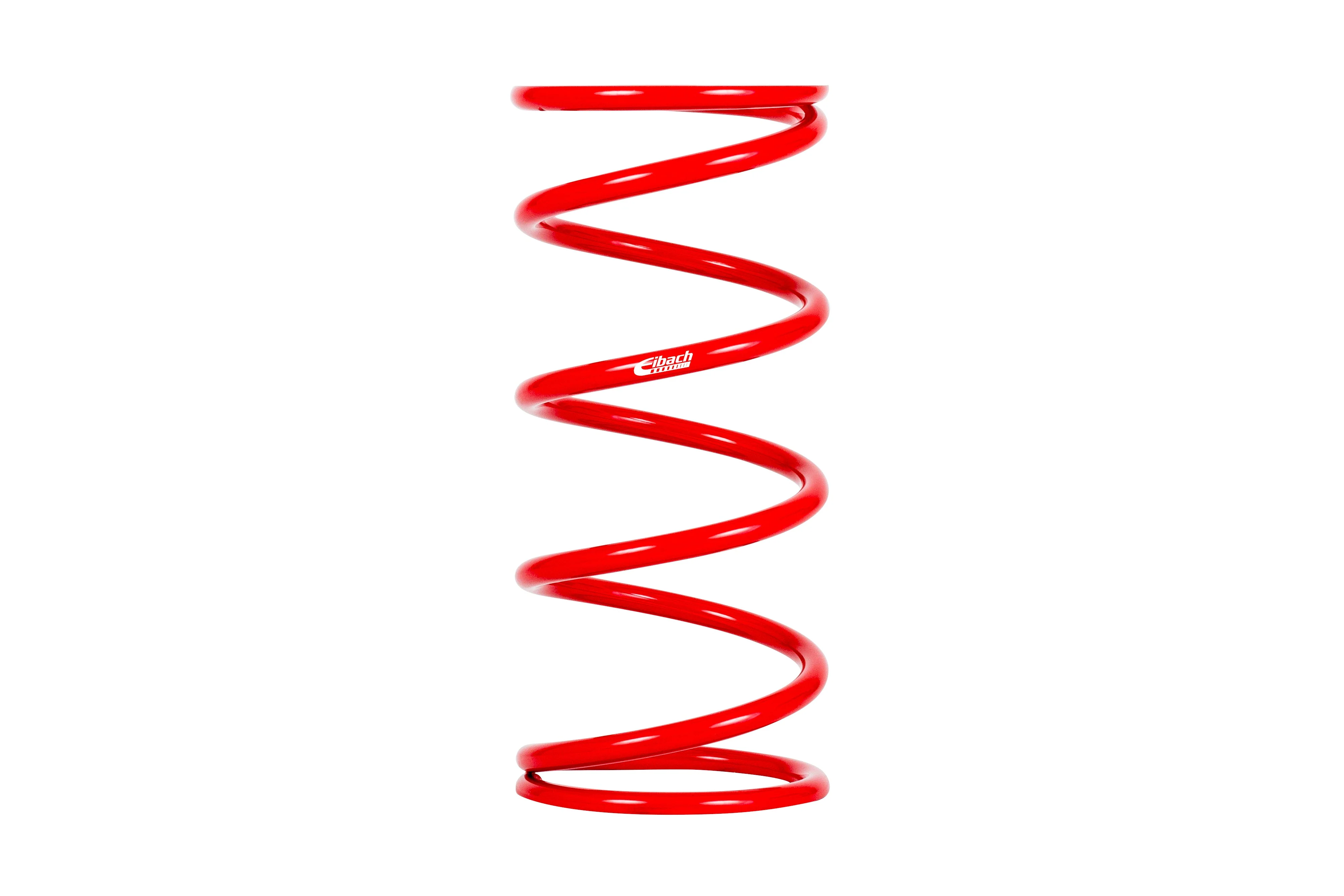

Eibach ESR (1400.500.0200) 1400 Length 5.0" ID 200 lbs Rate

Part Number= 1400.500.0200

PG= ESR

Length= 14 (inch) / 355.6 (mm)

Diameter= 5.00 O.D. (inch) / 127 O.D. (mm)200 (lbs/inch)

Rate= 3.57142857142857 (KG/mm) 35.0201365785327 (N/mm)

Block Height= 4.01574803149606 (inch) / 102

Travel= 9.98425196850394 (inch) / 253.6 (mm)

Block Load= 1989.12 (lbs) / 8880 (N))

Weight= 6.16 (lbs) / 2.8 (KGS)

Eibach Race Spring System

• Over 1,300 single components – main and tender springs – metric and imperial, various auxiliary race suspension accessories, ready and in stock on 5 continents
• Comprehensive Program of single components
• Single Main Springs with highest rate-linearity and lowest rate tolerance
• Progressive Characteristics via set-up of different springs serially – double or even triple spring combinations
• Extreme Low Weights achieved through Super Hi-Ten materials and manufacturing technology
• Smallest Solid heights, maximized spring travels and higher maximum loads
• Spring Surface Stabilization through specialized shot peening
• Every ERS Spring preset to block
• Block and Sag Resistant
• Smallest Tolerances and precise plane parallelism of spring ends
• High Dynamic Durability – under Motorsport conditions
• High quality corrosion protection by phosphating and epoxy coating
• Springs Printed with part-number (speaking code = rate and dimensions)
